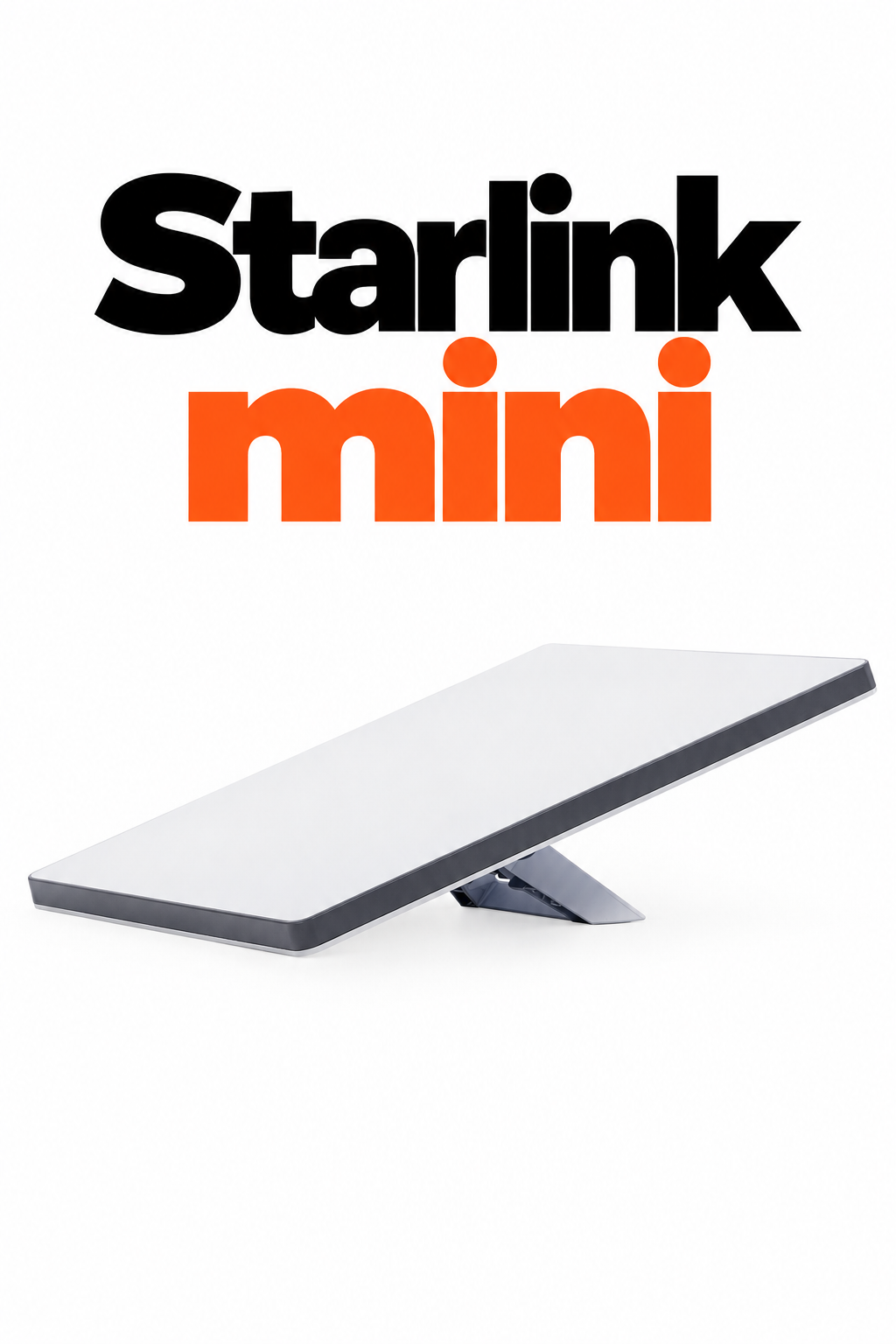

Starlink Mini Kit Satellite Internet (UTA-231)

Starlink Mini Kit is a compact, portable satellite internet system developed by SpaceX, featuring an integrated Wi-Fi router. It provides high-speed internet connectivity at home, in vehicles, while traveling, camping, or working in remote locations.

With its lightweight 1.1 kg design, compact dimensions, and low power consumption, Starlink Mini is an excellent solution for locations where reliable mobile or wired internet is unavailable.

The satellite antenna and Wi-Fi router are integrated into a single unit, eliminating the need for a separate router.

Key Features

Compact and Portable Design

Measuring just 298.5 × 259 × 38.5 mm, Starlink Mini fits easily into a backpack and can be quickly installed wherever internet access is needed.

Built-in Wi-Fi Router

Starlink Mini features integrated dual-band Wi-Fi 5 (2.4 GHz and 5 GHz), providing coverage of up to 112 m² (1,200 sq. ft.) and supporting up to 128 connected devices.

A built-in Ethernet LAN port is also available for wired connections.

Flexible Power Options

Starlink Mini can be powered using:

• A standard electrical outlet with the included power supply.

• Portable power stations such as EcoFlow, Oukitel, and other compatible brands.

• Power banks supporting 100W USB-C Power Delivery (20V / 5A) with a compatible cable.

• Compatible automotive power adapters.

• FPV drone batteries through compatible Technomil power converters capable of providing the required voltage and power.

Additional cables or adapters may be required for alternative power sources.

Low Power Consumption

With an average power consumption of approximately 25-40W, Starlink Mini is well suited for use with portable batteries and off-grid power systems.

Internet on the Move

Starlink Mini supports in-motion connectivity with eligible Starlink service plans. Permitted speeds, geographic availability, and usage conditions depend on the selected plan.

Weather-Resistant Construction

The antenna features an IP67 protection rating when the appropriate cables and protective plugs are correctly installed.

It operates in temperatures ranging from -30°C to +50°C and includes a snow-melting system capable of handling up to 25 mm of snow per hour.

Technical Specifications

• Manufacturer: SpaceX / Starlink

• Model: Starlink Mini Kit (UTA-231)

• Antenna type: Electronic phased array

• Field of view: 110°

• Orientation: Software-assisted manual alignment

• Dimensions: 298.5 × 259 × 38.5 mm

• Antenna weight: 1.1 kg

• Weight with kickstand: 1.16 kg

• Wi-Fi standard: Wi-Fi 5 (802.11a/b/g/n/ac)

• Wi-Fi frequencies: 2.4 / 5 GHz

• Wi-Fi coverage: Up to 112 m² (1,200 sq. ft.)

• Connected devices: Up to 128

• Ethernet: 1 × LAN port

• Power input: 12–48V DC

• Average power consumption: 25–40W

• USB-C PD power requirement: 100W, 20V / 5A recommended

• Environmental rating: IP67 when properly connected

• Operating temperature: -30°C to +50°C

• Snow melting capability: Up to 25 mm/hour

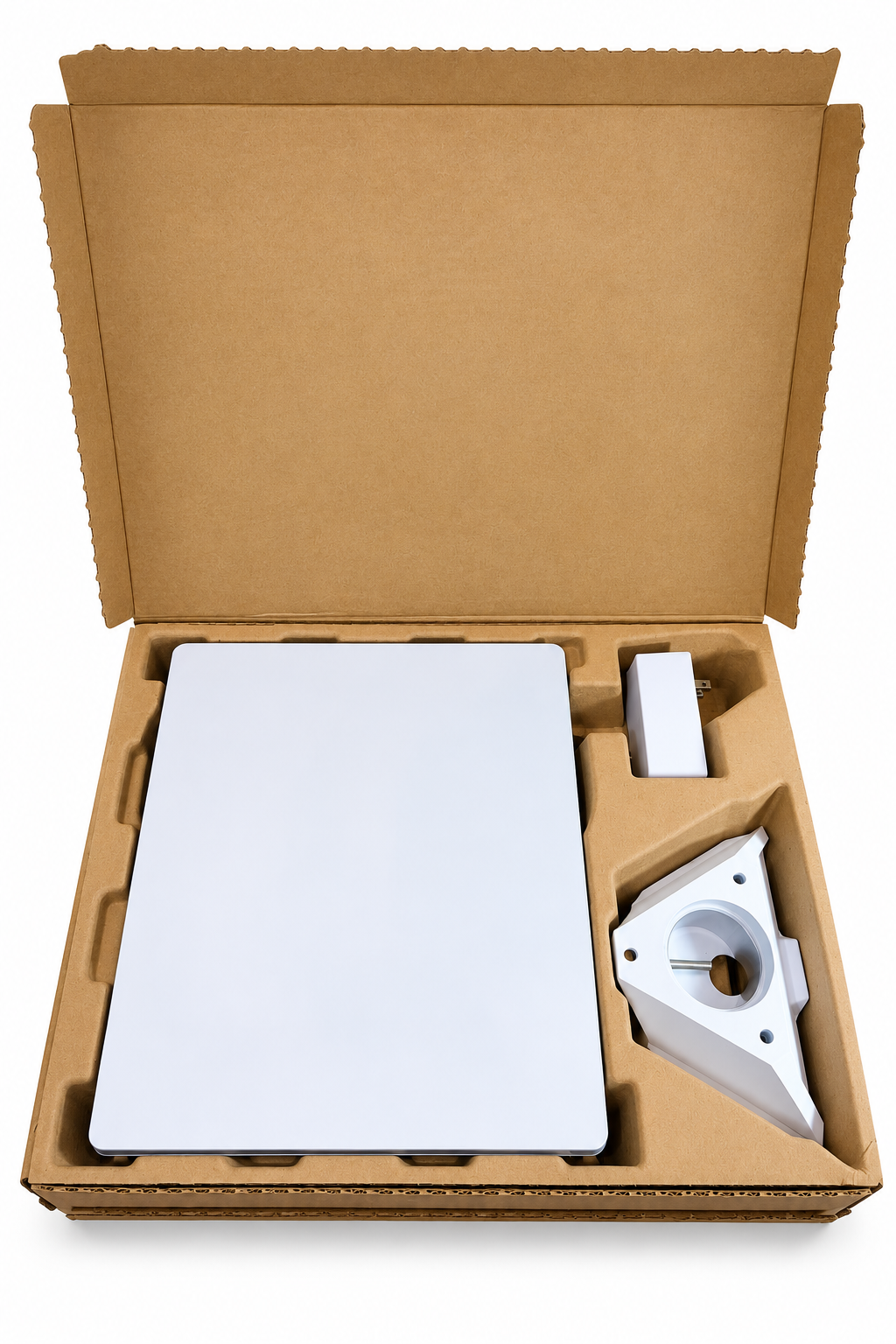

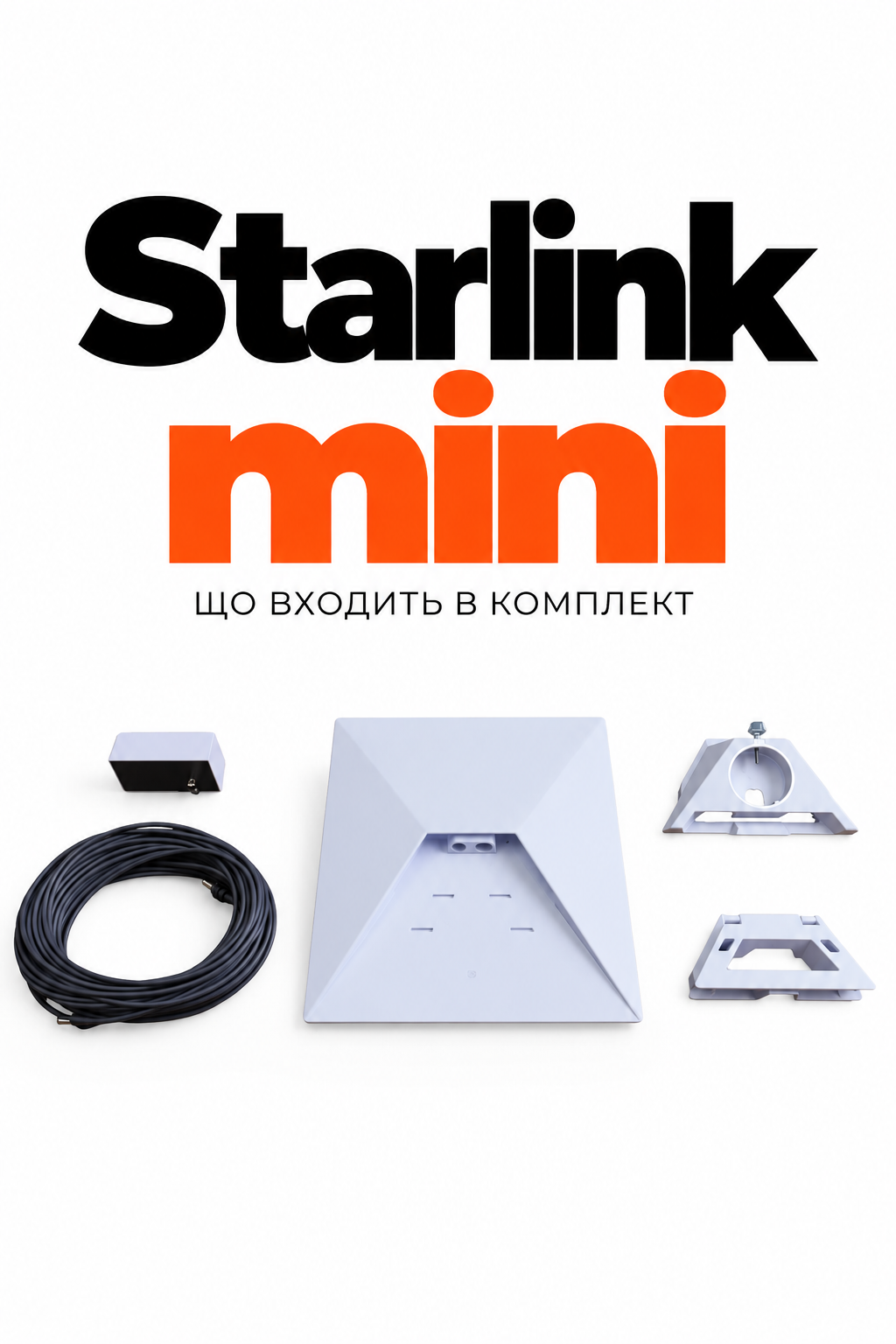

What's Included

1. Starlink Mini satellite antenna with integrated Wi-Fi router.

2. Kickstand.

3. Mini Pipe Adapter.

4. Flat Mount.

5. 15 m DC power cable.

6. Power supply.

7. Starlink Plug.

Note: A local power plug adapter, if provided by the seller, is supplied separately. Package contents and power plug types may vary by region and shipment batch.

Activation and Setup

Starlink Mini requires activation through the official Starlink service and an eligible subscription plan.

The Starlink mobile app guides users through installation, antenna alignment, and obstruction checking.

Important Information:

• Starlink subscription fees are not included in the equipment price.

• A clear, unobstructed view of the sky is required for reliable connectivity.

• Service availability and subscription options vary by country.

• USB-C operation requires a compatible cable and a power source with sufficient output.

Images are for illustration purposes only. Product appearance, included accessories, and package contents may vary depending on the shipment batch.
